Overview
Quick Details
Supply Ability
Packaging & Delivery
Hi Dear
Thanks for checking
This HF 13.56Mhz Access control Time Attendance reader
We are factory on it and can provide kind Access control reader.
Here are some informations for you reference:
Product Description
Applications
SID Global (Super Intelligent Device)
Established in late 2009
1300 square meters production plant
2 SMT production lines
Sold to customers from 130 countries around the globe
Main on Warehouse ,Library management project and Access control
There are office in Malaysia , Thailand and Shenzhen Which can support Local service
Factory Photos
.png)
.png)
.png)
Contact to
Whats App: 86-15820487100
Or Chloe(at)sid-global.com
You may want to talk about the projects requriement that we see how can support.
Quick Details
| Place of Origin : | Guangdong, China | Brand Name : | SID-Global |
| Frequency : | 13.56Mhz, 13.56MHz | Protocol : | ISO 14443A, ISO 14443A, EM4100, 4102 |
| Interface : | TCP/Wiegand | Read Range : | 10cm |
| Application: | Time Attendance |
Supply Ability
| Supply Ability | 20000 Box/Boxes per Month |
Packaging & Delivery
| Packaging Details | Box |
| Port | Shenzhen |
Hi Dear
Thanks for checking
This HF 13.56Mhz Access control Time Attendance reader
We are factory on it and can provide kind Access control reader.
Here are some informations for you reference:
Product Description
- Support ISO14443A, EM4100, 4102
- Stand-alone mode and network mode
- 2,000 users, expandable up to 5,000 or 10.000
- 100,000 event records
- Work mode: Card only, Pin only, Card + Pin mode
- Changeable 15-time group. Each time group has 8 days including 1 holiday and each day has 5-time schedule
- Built-in TCP/IP interface
- APB function, external reader for anti-passing (Wiegand port)
- All I/Os and operating times are user keypad programmable
- LCD: 128*64 pixels
- Housing sabotage alarm
- Dual function for access control and time attendance
- Watch-dog timer & power on reset
- PC housing material
| Model | SA100 |
| Operating Frequency | 13.56MHz; 125KHz (UID) |
| Contectless Standard | ISO14443A, EM4100 or compatible transponders |
| Interface | Mifare 1K 4k/ 125kHZ |
| Dimension | 132 x 62 x 23mm |
| Power Supply | 9V DC (9-24V) |
|
Cardholder |
2,000, expandable to 5,000 or 10,000 |
| Interface | TCP/IP Bulit in ,Option RS232 ,485 |
| Baud Rate | 9600 – 115200 bit/s (default 115200) |
|
APB |
External Wiegand 26/34 reader |
| Operation Mode | Card / Pin / Card + Pin |
| Records | Max. 100,000 |
| Memory | 128K Byte EEPROM |
| Keypad | 3*4 keypads with backlight |
| Display | 128*64 pixels |
| Input device | 2 inputs (push button, door state sensor) |
| Output device | 2 relay outputs (lock, alarm |
| Reading distance | 50mm (depending on transponder) |
| Indicators |
Buzzer and LED |
| Operating Temperature | -20°C ~ +60°C / -4°F ~ +140°F |
| Operating Humidity | 20-95% |
| IP Rating | Upon customer request |
Applications
- Printing
- Personal Identification
- Access Control
- Time Attendance
- Factory, School, club, Hotel
SID Global (Super Intelligent Device)
Established in late 2009
1300 square meters production plant
2 SMT production lines
Sold to customers from 130 countries around the globe
Main on Warehouse ,Library management project and Access control
There are office in Malaysia , Thailand and Shenzhen Which can support Local service

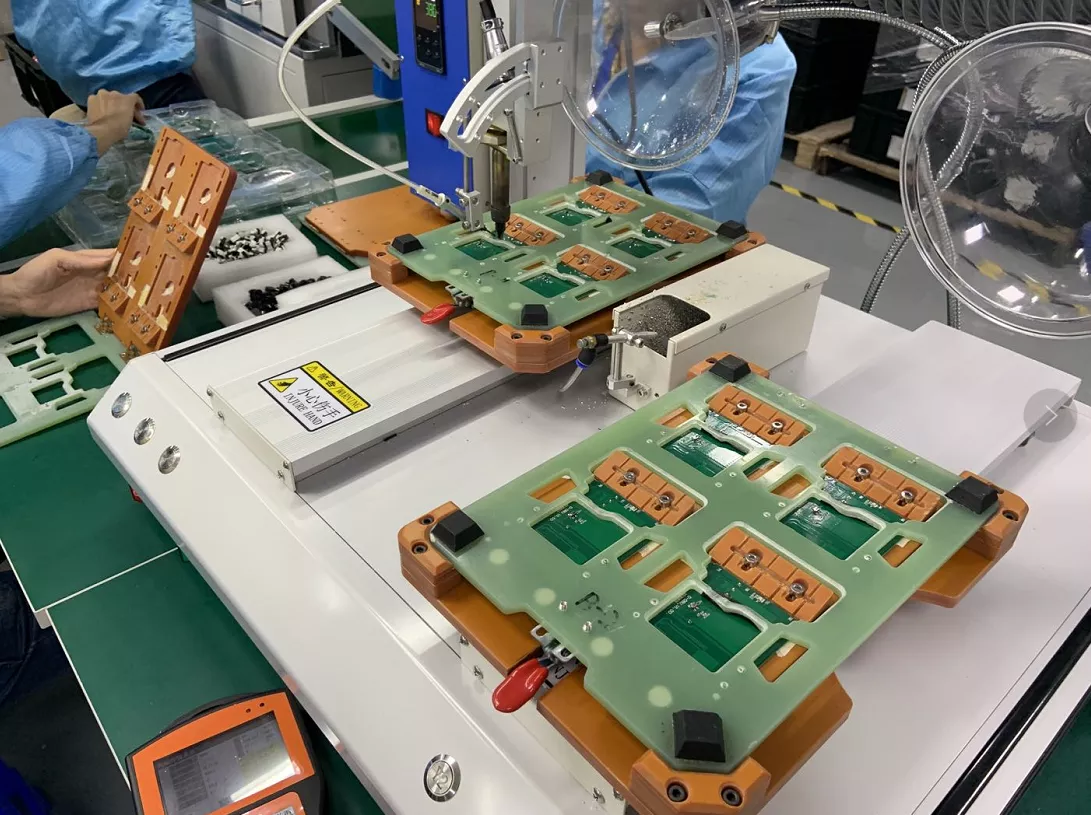

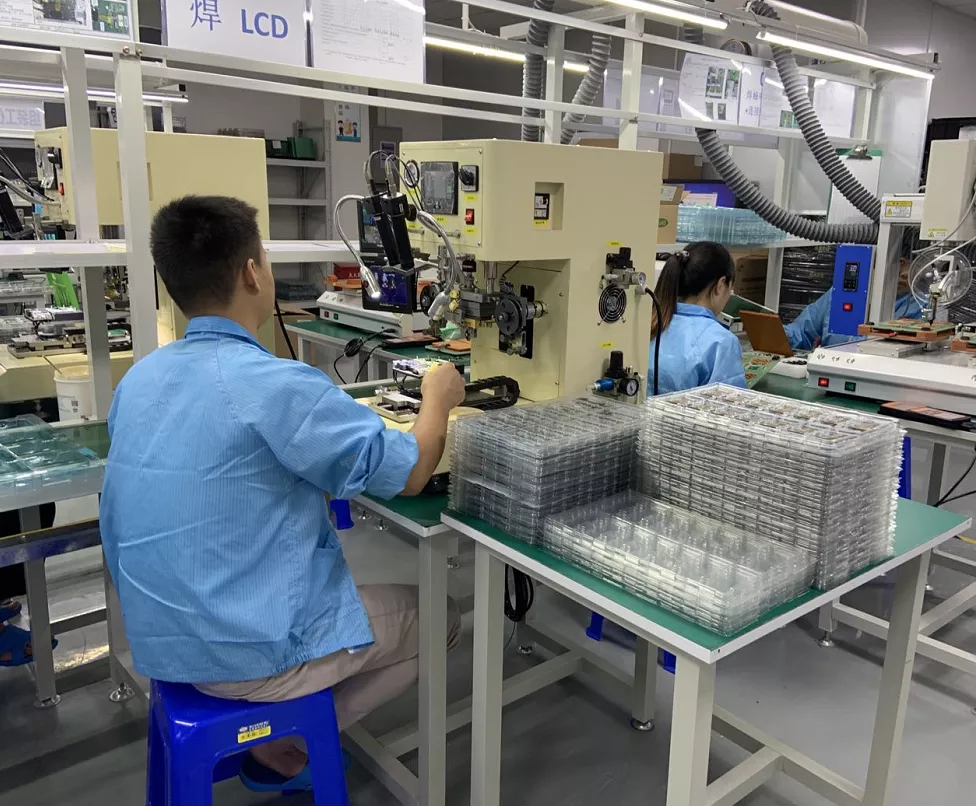

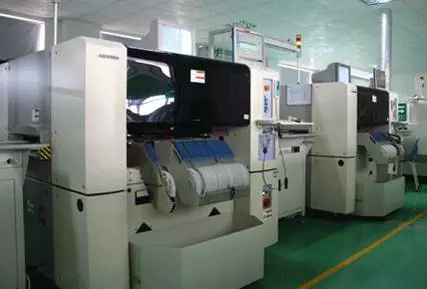

Factory Photos
Contact to
Whats App: 86-15820487100
Or Chloe(at)sid-global.com
You may want to talk about the projects requriement that we see how can support.
